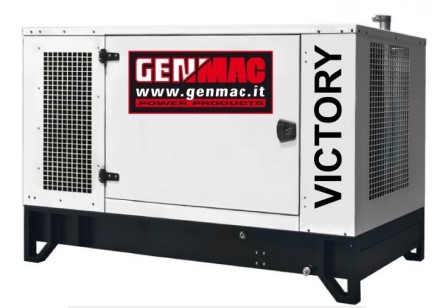

VICTORY G30BS 50Hz@1500RPM 400/230V 3PH

Silent generator with following specifications:

Frame:
– Heavy duty fabricated welded base plate with high quality steel UNI S235 JR
– Heavy duty, rubber anti-vibration mountings
– Dedicated area to make easier the electrical connection to the load
– Fuel tank with drain plug
– Lifting feet

Canopy:
– Large doors for easy access for service and maintenance
– Electro-galvanized sheet DC01+ZE25/25 (EN 10152: 2009)
– High precision sheet cutting with nitrogen laser technology to avoid oxidation
– Weatherproof sealed joints
– Lockable handles in each door
– White RAL 9010 specific powder coat paint for outdoor usage
– Rain cap on exhaust outlet
– Coolant refilling specific hatch
– Ecological Sound foam: 100% Recyclable, fire-proof self-extinguishing
class1 fire-reaction compliant washable, mechanically fixed to the frame

Muffler:
– Semi residential muffler integrated in the canopy

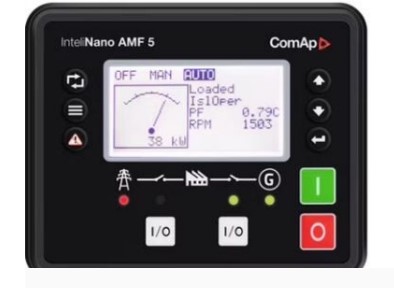

Control Panel:
– Self-standing control panel tower made with metal structure, easily removable for maintenance
– Easy access to control panel through a canopy’s door
– Control panel is divided in two independent and insulated boxes separating Controls (Controller and numbered terminal board) from Power connection (circuit breaker and cable inlet)
– External dedicated area to make easier the electrical connection to the load

All units and components are prototype tested, factory build and production tested. A specific control procedure during the several stages of production ensures long life and reliability.
